導體標 稱截面 mm2 |
導體 種類 |

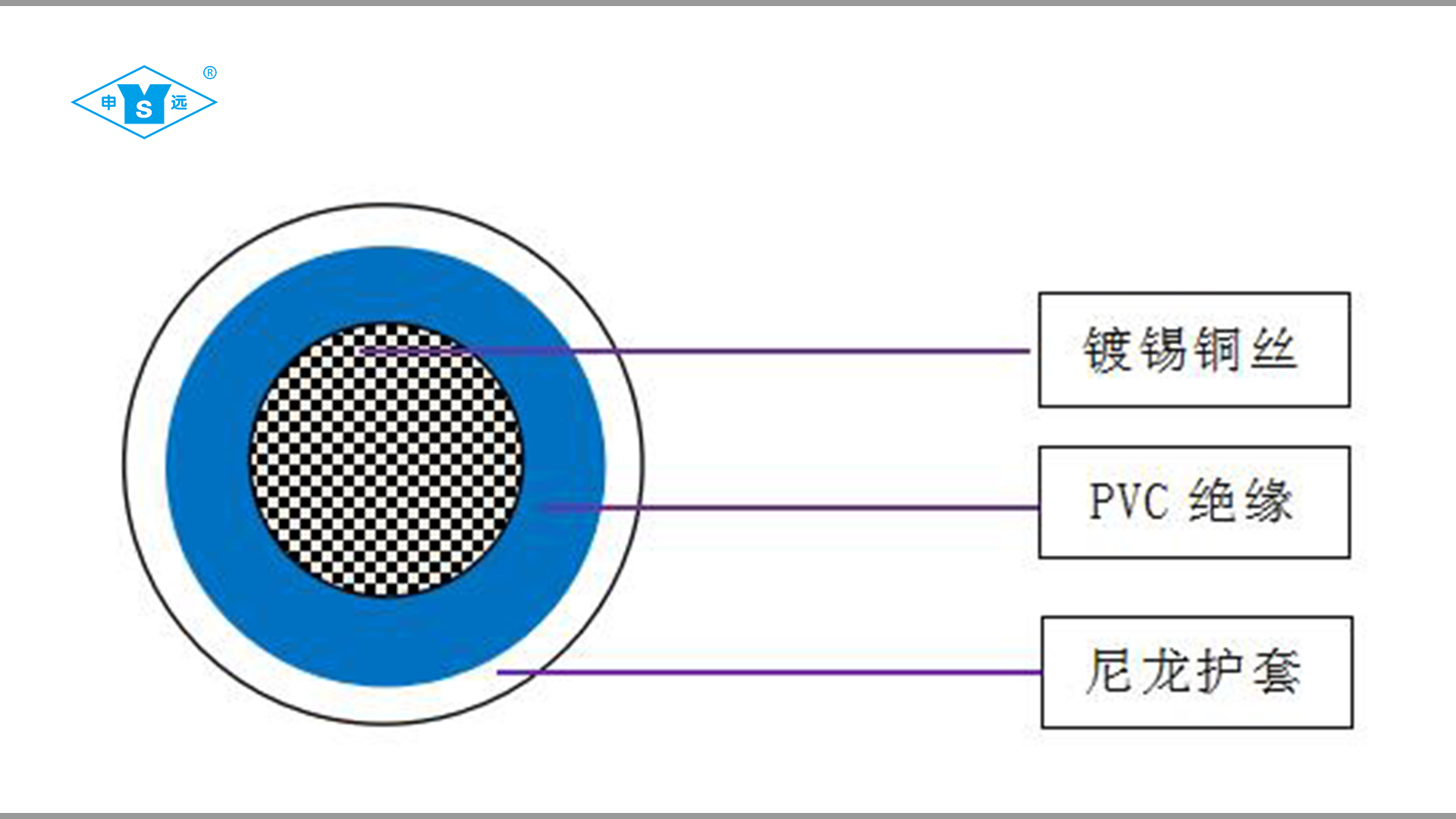

導體結構 （根數 / 單根線徑） |
絕緣厚度 規定值 mm |
尼龍護套 厚度規定值 mm |
平均外徑上限 mm |
20 ℃時導體電阻最大值（Ω /km) |
70 ℃時最小 絕緣電阻 M Ω· km |
|
|
銅芯 |
鍍錫 |
|||||||
|
1.5 |
1 |
1/1.38 |
0.4 |
0.10 |
2.9 |
12.1 |
12.2 |
0.011 |
|
1.5 |
2 |
7/0.52 |
0.4 |
0.10 |
3.0 |
12.1 |
12.2 |
0.010 |
|
2.5 |
1 |
1/1.78 |
0.4 |
0.10 |
3.3 |
7.41 |
7.56 |
0.010 |
|
2.5 |
2 |
7/0.68 |
0.4 |
0.10 |
3.4 |
7.41 |
7.56 |
0.009 |
|
4 |
1 |
1/2.25 |
0.4 |
0.10 |
3.8 |
4.61 |
4.70 |
0.0085 |
|
4 |
2 |
7/0.85 |
0.4 |
0.10 |
4.0 |
4.61 |
4.70 |
0.0077 |
|
6 |
1 |
1/2.76 |
0.5 |
0.10 |
4.7 |
3.08 |
3.11 |
0.0070 |
|
6 |
2 |
7/1.04 |
0.5 |
0.10 |
4.9 |
3.08 |
3.11 |
0.0065 |
|
10 |
1 |
1/3.58 |
0.7 |
0.13 |
6.2 |
1.83 |
1.84 |
0.0070 |
|
10 |
2 |
7/1.35 |
0.7 |
0.13 |
6.5 |
1.83 |
1.84 |
0.0065 |
|
16 |
2 |
7/1.70 |
0.8 |
0.13 |
7.8 |
1.15 |
1.16 |
0.0050 |
|
25 |
2 |
7/2.14 |
1.0 |
0.15 |
9.9 |
0.727 |
0.734 |
0.0050 |
|
35 |
2 |
7/2.52 |
1.0 |
0.15 |
11.0 |
0.524 |
0.529 |
0.0043 |
|
50 |
2 |
19/1.78 |
1.2 |
0.18 |
13.0 |
0.387 |
0.391 |
0.0043 |
|
70 |
2 |
19/2.14 |
1.3 |
0.18 |
15.5 |
0.268 |
0.270 |
0.0035 |
|
95 |
2 |
19/2.52 |
1.3 |
0.18 |
17.0 |
0.193 |
0.195 |
0.0035 |
|
120 |
2 |
37/2.03 |
1.4 |
0.18 |
19.0 |
0.153 |
0.154 |
0.0032 |
|
150 |
2 |
37/2.25 |
1.5 |
0.20 |
21.0 |
0.124 |
0.126 |
0.0032 |
|
185 |
2 |
37/2.52 |
1.6 |
0.20 |
23.5 |
0.0991 |
0.100 |
0.0032 |
|
240 |
2 |
61/2.25 |
1.6 |
0.20 |
26.0 |
0.0754 |
0.0762 |
0.0032 |
|
300 |
2 |
61/2.52 |
1.8 |
0.23 |
29.0 |
0.0601 |
0.0607 |
0.0030 |
|
400 |
2 |
61/2.85 |
1.8 |
0.23 |
32.5 |
0.0470 |
0.0475 |
0.0028 |
