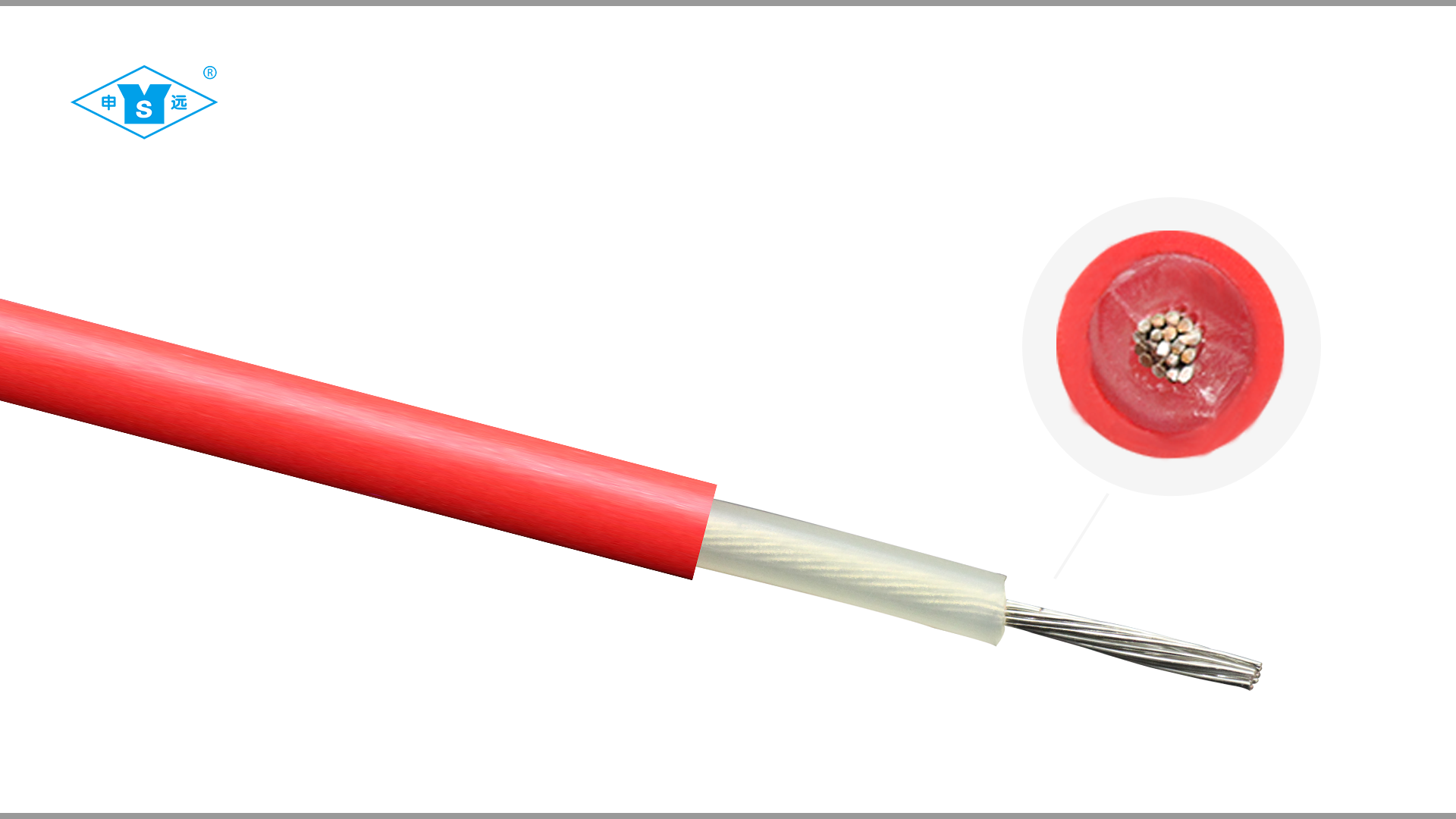

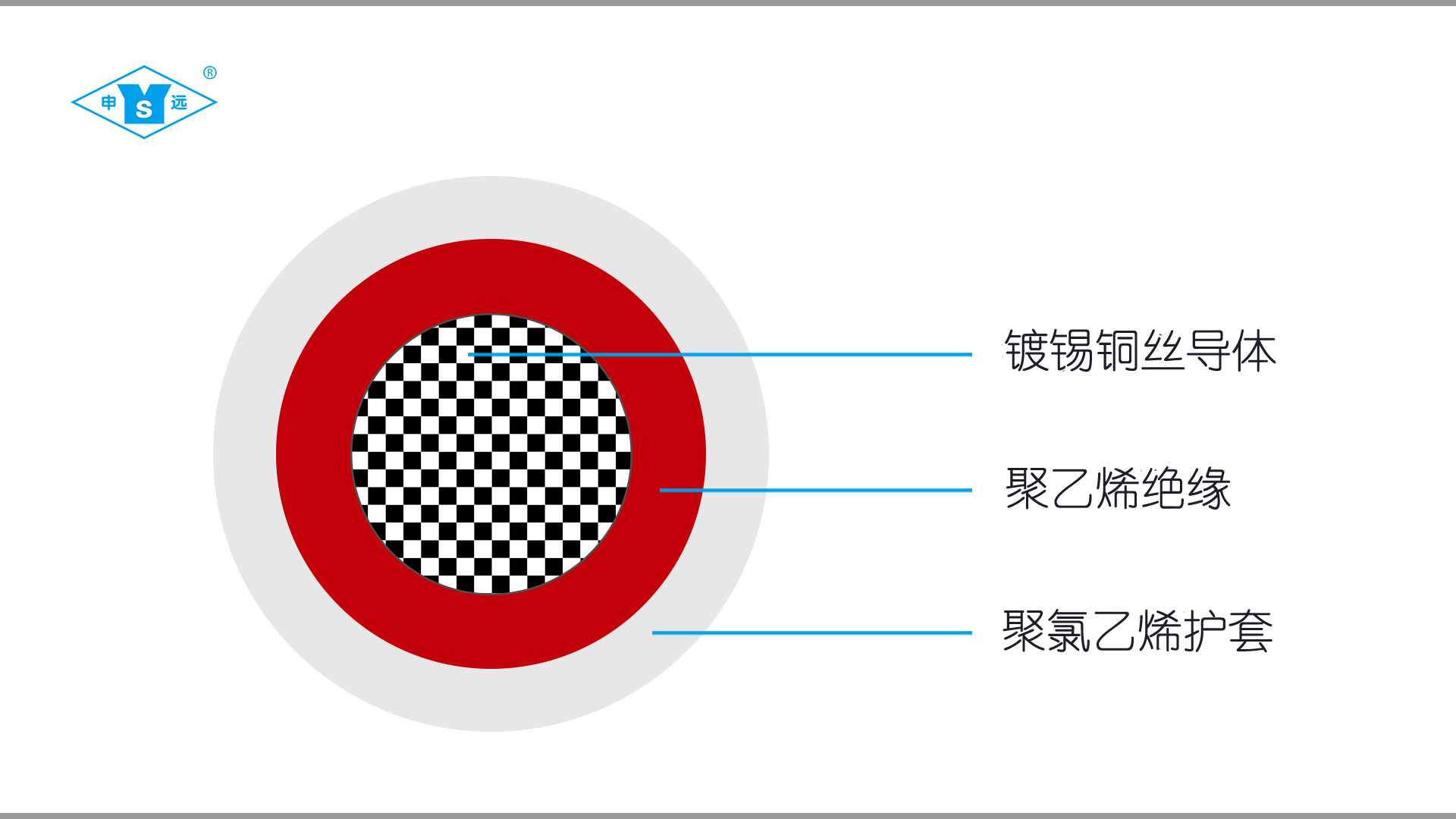

導體：退火圓銅線，鍍錫導體；
絕緣；高壓聚乙烯（ PE ） + 聚氯乙烯（ PVC ）
工作溫度： - 15 ℃ -- 70 ℃
顏色：白、紅 、黃、綠、黑等用戶需要的顏色；
本產品具有非常優異的耐電壓壓性能；電線直徑??；可以根據
戶要求制作不同規格，不同耐壓級的產品；
本產品廣泛用于：非高溫環境的高壓連接線路；高壓霓虹等燈具上；長期高壓環境使用的電子線路中；可以滿足交流，長期直流或脈沖供電線路中；
如果產品為超高壓（80KV 以上），絕緣可以采取導體屏蔽 + 絕緣；
產品設計為直流電壓（DC ），如果為交流，使用高一個電壓檔產品；
|
型 號 |
導 體 |
絕 緣 |
護 套 |
電纜參考重量 KG/KM |
|||||
|
規格 |
耗材 kg |
厚度 mm |
直徑 mm |
耗材 kg |
厚度 mm |
直徑 mm |
耗材 kg |
||
|
GYV-10KV |
7/0.20 |
2.0 |
0.6 |
1.8 |
2.2 |
0.5 |
2.8 |
5.2 |
9.4 |
|
19/0.12 |
2.0 |
0.6 |
1.8 |
2.2 |
0.5 |
2.8 |
5.2 |
9.4 |
|
|
7/0.26 |
3.5 |
0.6 |
1.98 |
2.5 |
0.5 |
2.98 |
5.6 |
11.6 |
|
|
19/0.16 |
3.6 |
0.6 |
2.0 |
2.5 |
0.5 |
3.0 |
5.7 |
11.8 |
|
|
7/0.30 |
4.5 |
0.6 |
2.1 |
2.7 |
0.5 |
3.1 |
5.8 |
13.0 |
|
|
19/0.18 |
4.5 |
0.6 |
2.1 |
2.7 |
0.5 |
3.1 |
5.8 |
13.0 |
|
|
19/0.23 |
7.5 |
0.6 |
2.35 |
3.1 |
0.5 |
3.35 |
6.3 |
16.9 |
|
|
7/0.40 |
8.3 |
0.6 |
2.4 |
3.2 |
0.5 |
3.4 |
6.8 |
18.4 |
|
|
19/0.26 |
9.2 |
0.7 |
2.7 |
4.4 |
0.6 |
3.9 |
9.3 |
22.9 |
|
|
19/0.30 |
12 |
0.7 |
2.9 |
4.8 |
0.6 |
4.1 |
10.0 |
26.8 |
|
|
19/0.32 |
14 |
0.7 |
3.0 |
5.1 |
0.6 |
4.2 |
10.2 |
29.3 |
|
|
19/0.37 |
19.3 |
0.8 |
3.45 |
6.7 |
0.7 |
4.85 |
13.7 |
39.7 |
|
|
19/0.41 |
23.7 |
0.8 |
3.65 |
7.2 |
0.7 |
5.05 |
14.4 |
45.3 |
|
|
37/0.37 |
37.6 |
0.8 |
4.19 |
8.5 |
0.7 |
5.59 |
16.2 |
62.3 |
|
|
GYV-15KV |
7/0.20 |
2.0 |
0.9 |
2.4 |
4.1 |
0.6 |
3.6 |
8.5 |
14.6 |
|
19/0.12 |
2.0 |
0.9 |
2.4 |
4.1 |
0.6 |
3.6 |
8.5 |
14.6 |
|
|
7/0.26 |
3.5 |
0.9 |
2.58 |
4.6 |
0.6 |
3.78 |
9.1 |
17.2 |
|
|
19/0.16 |
3.6 |
0.9 |
2.6 |
4.7 |
0.6 |
3.8 |
9.2 |
17.5 |
|
|
7/0.30 |
4.5 |
0.9 |
2.7 |
4.9 |
0.6 |
3.9 |
9.4 |
17.8 |
|
|
19/0.18 |
4.5 |
0.9 |
2.7 |
4.9 |
0.6 |
3.9 |
9.4 |
17.8 |
|
|
19/0.23 |
7.5 |
0.9 |
2.95 |
5.5 |
0.6 |
4.15 |
10.1 |
23.1 |
|
|
7/0.40 |
8.3 |
0.9 |
3.0 |
5.7 |
0.6 |
4.2 |
10.2 |
24.2 |
|
|
19/0.26 |
9.2 |
1.0 |
3.3 |
7.3 |
0.7 |
4.7 |
8.8 |
25.3 |
|
|
19/0.30 |
12 |
1.0 |
3.5 |
7.9 |
0.7 |
4.9 |
13.9 |
33.8 |
|
|
19/0.32 |
14 |
1.0 |
3.6 |
8.2 |
0.7 |
5.0 |
14.2 |
36.4 |
|
|
19/0.37 |
19.3 |
1.1 |
4.05 |
10.2 |
0.8 |
5.65 |
18.3 |
47.8 |
|
|
19/0.41 |
23.7 |
1.1 |
4.25 |
10.9 |
0.8 |
5.85 |
19.1 |
53.7 |
|
|
37/0.37 |
37.6 |
1.1 |
4.79 |
12.8 |
0.8 |
6.39 |
21.1 |
71.5 |
|
|
GYV-20KV |
7/0.20 |
2.0 |
1.2 |
3.0 |
6.5 |
0.6 |
4.2 |
10.2 |
18.7 |
|
19/0.12 |
2.0 |
1.2 |
3.0 |
6.5 |
0.6 |
4.2 |
10.2 |
18.7 |
|
|
7/0.26 |
3.5 |
1.2 |
3.18 |
7.1 |
0.6 |
4.38 |
10.7 |
21.3 |
|
|
19/0.16 |
3.6 |
1.2 |
3.2 |
7.2 |
0.6 |
4.4 |
10.8 |
21.5 |
|
|
7/0.30 |
4.5 |
1.2 |
3.3 |
7.5 |
0.6 |
4.5 |
11.4 |
22.4 |
|
|
19/0.18 |
4.5 |
1.2 |
3.3 |
7.5 |
0.6 |
4.5 |
11.4 |
22.4 |
|
|
19/0.23 |
7.5 |
1.2 |
3.55 |
8.4 |
0.6 |
4.75 |
11.8 |
27.3 |
|
|
7/0.40 |
8.3 |
1.2 |
3.6 |
8.4 |
0.6 |
4.8 |
11.9 |
27.4 |
|
|
19/0.26 |
9.2 |
1.3 |
3.9 |
10.6 |
0.7 |
5.3 |
15.2 |
35.0 |
|
|
19/0.30 |
12 |
1.3 |
4.1 |
11.5 |
0.7 |
5.5 |
15.9 |
39.4 |
|
|
19/0.32 |
14 |
1.3 |
4.2 |
11.9 |
0.7 |
5.6 |
16.2 |
42.1 |
|
|
19/0.37 |
19.3 |
1.4 |
4.65 |
14.3 |
0.8 |
6.25 |
20.6 |
54.2 |
|
