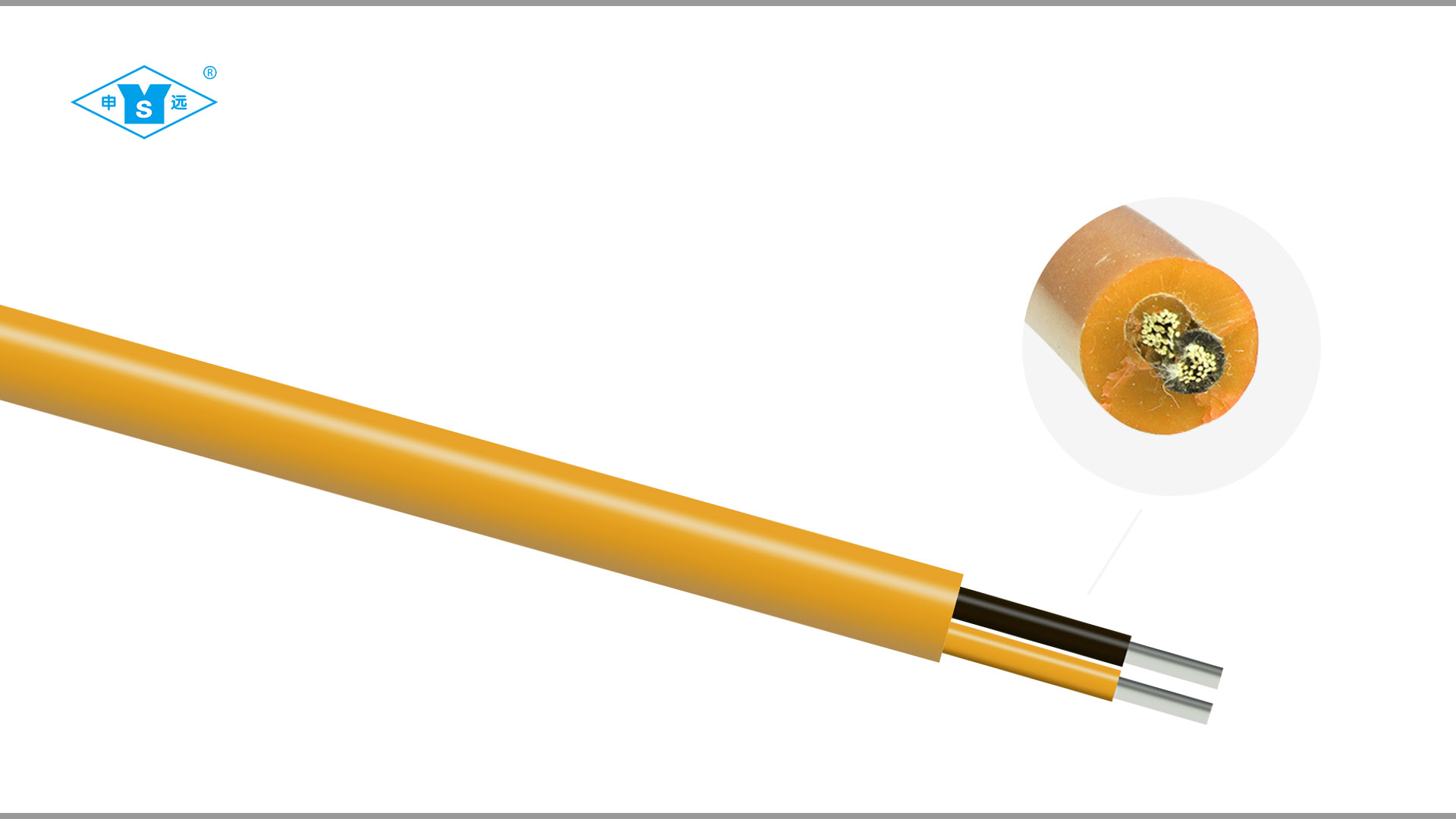

1、額定電壓：450/750V
2、工作溫度：-60～+200℃
3、導 體：絞合鍍錫銅線
4、絕 緣：硅橡膠
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
|
芯數(shù)×截面
（mm2）
|
導體結(jié)構(gòu)
根數(shù)/線徑（mm）
|
絕緣厚度（mm） |
完成外徑（mm） |
護套厚度（mm）
|
平均外徑（mm） |
20 ℃時導體電阻≤ （Ω /KM ） |
|
2 × 4 |
56/0.30 |
0.70 |
4.10 |
1.40 |
11.0 |
5.09 |
|
3 × 4 |
56/0.30 |
0.70 |
4.10 |
1.60 |
12.0 |
5.09 |
|
4 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
13.5 |
5.09 |
|
5 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
14.6 |
5.09 |
|
6 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
16.0 |
5.09 |
|
7 × 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
16.0 |
5.09 |
|
10 × 4 |
56/0.30 |
0.70 |
4.10 |
2.20 |
20.0 |
5.09 |
|
12 × 4 |
56/0.30 |
0.70 |
4.10 |
2.40 |
22.0 |
5.09 |
|
2 × 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.0 |
3.39 |
|
3 × 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.8 |
3.39 |
|
4 × 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
15.4 |
3.39 |
|
5 × 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
16.8 |
3.39 |
|
6 × 6 |
84/0.30 |
0.70 |
4.90 |
2.00 |
18.8 |
3.39 |
|
7 × 6 |
84/0.30 |
0.70 |
4.90 |
2.00 |
18.8 |
3.39 |
|
10 × 6 |
84/0.30 |
0.70 |
4.90 |
2.20 |
23.4 |
3.39 |
|
2 × 10 |
84/0.40 |
1.0 |
6.60 |
1.80 |
17.0 |
1.95 |
|
3 × 10 |
84/0.40 |
1.0 |
6.60 |
1.80 |
18.0 |
1.95 |
|
4 × 10 |
84/0.40 |
1.0 |
6.60 |
2.00 |
20.0 |
1.95 |
|
5 × 10 |
84/0.40 |
1.0 |
6.60 |
2.40 |
22.8 |
1.95 |
|
2 × 16 |
126/0.40 |
1.2 |
8.40 |
2.50 |
21.8 |
1.24 |
|
3 × 16 |
126/0.40 |
1.2 |
8.40 |
2.60 |
23.2 |
1.24 |
|
4 × 16 |
126/0.40 |
1.2 |
8.40 |
2.60 |
25.6 |
1.24 |
|
5 × 16 |
126/0.40 |
1.2 |
8.40 |
2.80 |
28.2 |
1.24 |
|
2 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
25.4 |
0.795 |
|
3 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
27.0 |
0.795 |
|
4 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
29.6 |
0.795 |
|
5 × 25 |
196/0.40 |
1.30 |
10.10 |
2.6 |
32.80 |
0.795 |
|
2 × 35 |
494/0.30 |
1.4 |
11.5 |
2.4 |
28.0 |
0.565 |
|
3 × 35 |
494/0.30 |
1.4 |
11.5 |
2.6 |
30.0 |
0.565 |
|
4 × 35 |
494/0.30 |
1.4 |
11.5 |
2.6 |
33.0 |
0.565 |
|
3*50 |
396/0.40 |
1.6 |
14.0 |
2.8 |
36.0 |
0.393 |
|
4 × 50 |
396/0.40 |
1.6 |
14.0 |
2.8 |
39.6 |
0.393 |
|
3 × 70 |
551/0.40 |
1.6 |
15.6 |
3.0 |
40.0 |
0.277 |
|
3 × 95 |
760/0.40 |
1.8 |
18.2 |
3.2 |
45.8 |
0.210 |
|
3 × 120 |
608/0.50 |
2.0 |
20.0 |
3.6 |
50.6 |
0.164 |
|
3 × 150 |
760/0.50 |
2.2 |
22.4 |
3.8 |
56.2 |
0.132 |
|
3 × 185 |
925/0.50 |
2.4 |
24.8 |
4.0 |
61.8 |
0.108 |
|
3 × 240 |
1221/0.50 |
2.6 |
28.2 |
4.2 |
69.4 |
0.082 |
