1、額定電壓：300/500V
2、工作溫度：-60～+200℃

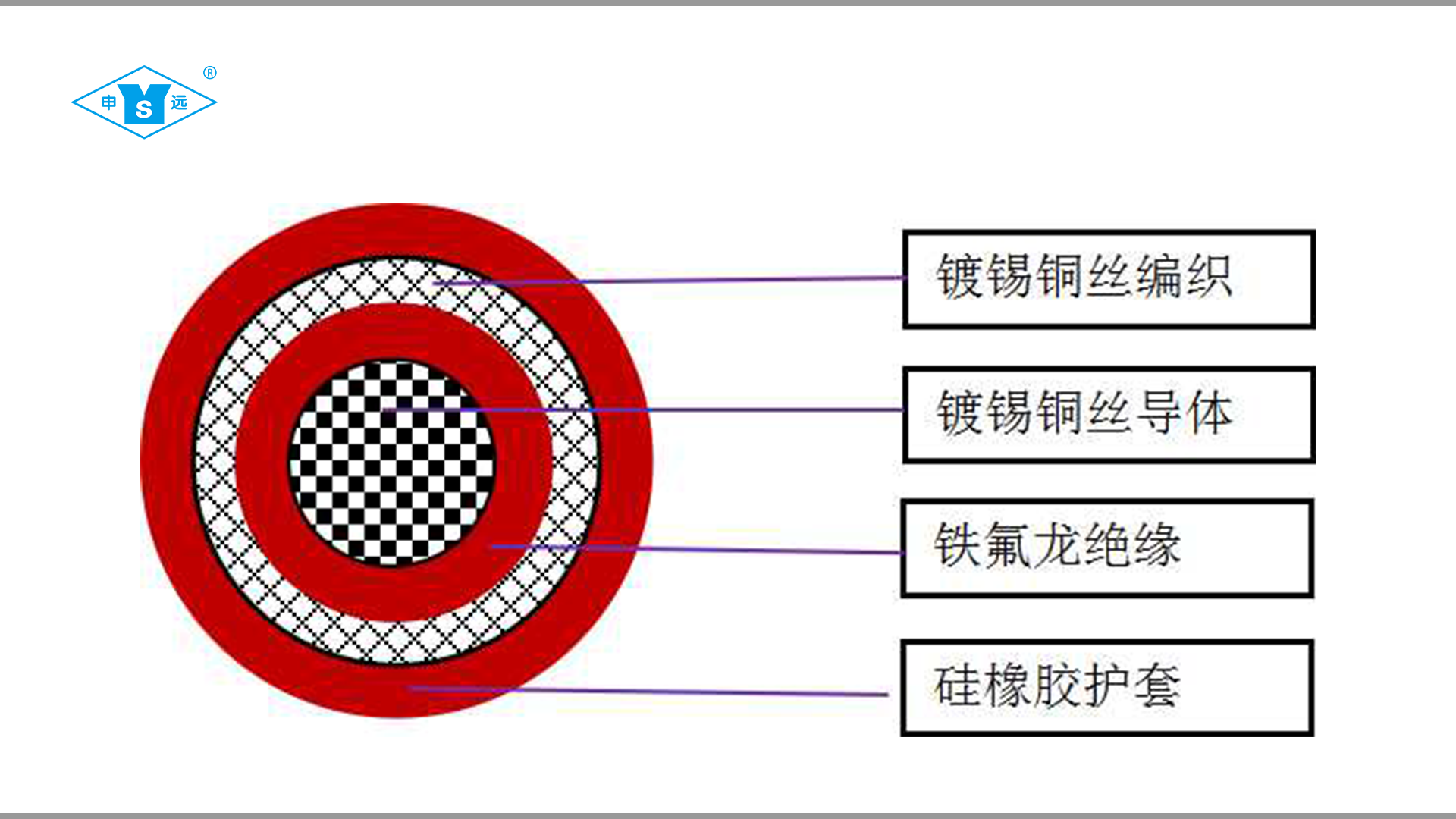

3、導 體：絞合鍍錫銅線
4、絕 緣：FEP 鐵氟龍
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
|
芯數×截面
（mm2）
|
導體結構
根數/線徑
|
絕緣厚度
（mm）
|
絕緣外徑
（mm）
|
護套厚度
（mm）
|
平均外徑
（mm）
|
20 ℃時導體直流電阻
（Ω/km）
|
|
1×0.4 |
48/0.10 |
0.50 |
1.80 |
0.80 |
4.0 |
53.1 |
|
1×0.75 |
19/0.23 |
0.60 |
2.35 |
0.65 |
4.10 |
24.6 |
|
1×1.5 |
19/0.32 |
0.60 |
2.80 |
1.20 |
5.80 |
12.7 |
|
3×0.08 |
7/0.12 |
0.20 |
0.76 |
0.70 |
3.40 |
245 |
|
4×0.08 |
7/0.12 |
0.20 |
0.76 |
0.80 |
4.0 |
245 |
|
5×0.08 |
7/0.12 |
0.20 |
0.76 |
0.80 |
4.20 |
245 |
|
6×0.08 |
7/0.12 |
0.20 |
0.76 |
1.10 |
5.20 |
245 |
|
2×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
3.90 |
163 |
|
3×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
4.0 |
163 |
|
4×0.15 |
7/0.15 |
0.25 |
0.95 |
1.0 |
4.80 |
163 |
|
5×0.12 |
7/0.15 |
0.25 |
0.95 |
0.90 |
4.90 |
163 |
|
6×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.40 |
163 |
|
7×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.50 |
163 |
|
2×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.30 |
90.4 |
|
3×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.50 |
90.4 |
|
4×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.20 |
90.4 |
|
5×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.50 |
90.4 |
|
6×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
7×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
8×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.50 |
90.4 |
|
10×0.2 |
7/0.20 |
0.25 |
1.10 |
1.40 |
7.60 |
90.4 |
|
16×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
8.60 |
90.4 |
|
19×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
9.0 |
90.4 |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.0 |
53.1 |
|
3*0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.40 |
53.1 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.20 |
53.1 |
|
5×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.50 |
53.1 |
|
6×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
7×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
8×0.35 |
19/0.16 |
0.25 |
1.30 |
1.40 |
7.80 |
53.1 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.20 |
40.1 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.50 |
40.1 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
1.10 |
6.10 |
40.1 |
|
5×0.5 |
19/0.18 |
0.25 |
1.40 |
1.20 |
6.80 |
40.1 |
|
6×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.20 |
40.1 |
|
7×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.40 |
40.1 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
1.20 |
6.30 |
24.6 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
1.40 |
7.0 |
24.6 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.0 |
24.6 |
|
5×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.20 |
24.6 |
|
6×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.60 |
24.6 |
|
7×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.80 |
24.6 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.60 |
20.4 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.30 |
20.4 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.80 |
20.4 |
|
7×1 |
19/0.26 |
0.25 |
1.80 |
1.60 |
8.60 |
20.4 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
1.30 |
7.70 |
12.7 |
|
3×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.20 |
12.7 |
|
4×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.50 |
12.7 |
|
7×1.5 |
19/0.32 |
0.30 |
2.25 |
1.60 |
10.50 |
12.7 |
|
2×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.20 |
7.43 |
|
3×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.60 |
7.43 |
|
4×2.5 |
19/0.41 |
0.40 |
2.80 |
1.60 |
10.60 |
7.43 |
|
7×2.5 |
19/0.41 |
0.40 |
2.80 |
1.80 |
12.6 |
7.43 |
